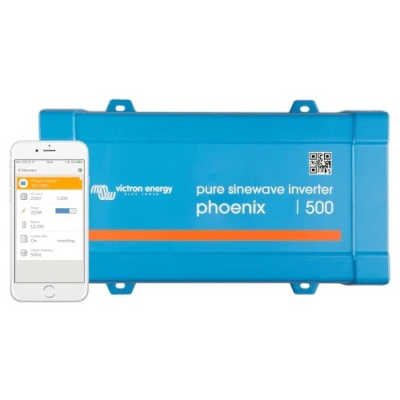

Victron Phoenix Inverter 48V/500VA/230V VE.Direct with IEC Socket

• Manufacturer Victron Energy
• Commodity Code 85044085
• Dimensions (mm) (H x W x D) 150 x 350 x 230

VE.Direct communication port

The VE.Direct port can be connected to:

• A computer with the VE.Direct > USB interface cable (RG1060277)
• Apple and Android smartphones, tablets, Macbooks and other devices with the Bluetooth Smart dongle (RG1060280)

Fully configurable:

• Reset levels and alarm triggering in case of low battery voltage
• Restart Levels and Shutdown for Low Battery Voltage
• Output voltage from 210V to 245V
• Output frequency 50Hz or 60 Hz
• ECO mode detection level and ECO mode on/off

Monitoring :

• Current and voltage alarms, input and output
•

Strong starting power

Needed to start loads such as power converters for LED, halogen bulbs or power tools.

ECO mode

In ECO mode, the converter will switch to pause if the load drops below a predetermined value. Once paused, the converter will turn on for a short period of time (adjustable; default: every 2.5 seconds). If the load exceeds a pre-configured level, the converter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector or between the positive pole of the battery and the left contact of the two-pole connector
