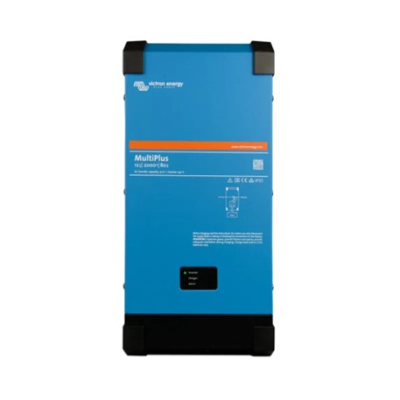

Victron MultiPlus-II 24/3000/70-50 120V (UL)
SKU: PMP121500100
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, with an addition of an external current transformer option to implement PowerControl and PowerAssist along with optimizing self-consumption with external current sensing (max. 32A)
- Manufacturer Victron Energy
- Commodity Code 85044085
- Dimensions (mm) (H x W x D) 240 x 580 x 345
Power Assist
The MultiPlus-II will avoid an overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.
ESS : Energy Storage Systems
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast(less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and systems locally (LAN) or remotely via the internet from anywhere in the world, using free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto sharing a backup generator and more.
