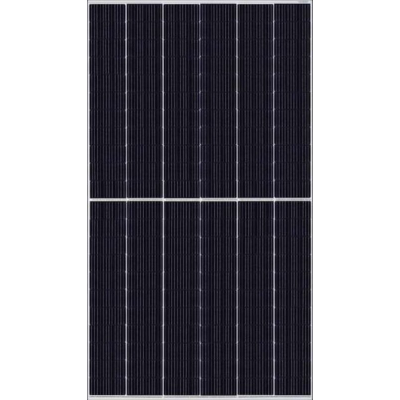

Trinasolar 505W Vertex S+ Dual Glass N-type iTOPCon Mono Solar Module – Full Black

The Trinasolar 505W Vertex S+ Dual Glass N-type iTOPCon Mono Solar Module – Full Black sets a new benchmark for residential and commercial solar installations across Europe. Designed with N-type iTOPCon cell technology and a dual-glass architecture, this module provides enhanced efficiency, longevity, and performance in diverse European climates.

Engineered for rooftops with limited space, the Trinasolar 505W Vertex S+ offers a high power output of up to 505W and a module efficiency of 22.7%, maximising solar energy yield while maintaining a sleek, full black aesthetic. Its compact design (under 2m in length) ensures easy handling and installation, making it a perfect fit for both residential and commercial systems.

Key Features:

Exceptional Efficiency: 22.7% efficiency powered by advanced N-type iTOPCon technology.

High Power Output: Maximum 505W capacity with positive power tolerance (0/+5W) ensures consistent performance.

Durable Dual-Glass Design: Improved resistance against environmental stress, withstanding up to 5,400 Pa snow and 2,400 Pa wind loads.

Superior Degradation Control: Just 1% power loss in the first year, followed by a minimal 0.4% annual degradation — guaranteed up to 30 years.

Full Black Finish: Enhances visual integration for residential rooftops across Europe, offering both performance and style.

Optimised for European Installers:

Installers will benefit from the Vertex S+ module’s universal compatibility with mainstream inverters, optimisers, and mounting systems. Its low operating voltage also enables longer strings, reducing BOS (Balance of System) costs. Furthermore, the product’s comprehensive certifications, including IEC and ISO standards, ensure full compliance with European quality and safety regulations.

Technical Highlights:

Dimensions: 1961 × 1134 × 30 mm

Weight: 23.5 kg

Open Circuit Voltage (Voc): 40.3 V

Short Circuit Current (Isc): 15.09 A

Maximum Power Voltage (Vmpp): 33.5 V

Maximum Power Current (Impp): 15.89 A

Connector Type: MC4 EVO2

Module Format: 108 monocrystalline cells (dual-glass)

Operating Temperature Range: –40°C to +85°C

Warranty: 25 years product warranty and 30 years performance warranty

The Trinasolar 505W Vertex S+ Dual Glass N-type iTOPCon Mono Solar Module – Full Black is an ideal solution for installers seeking reliable, high-efficiency modules with proven long-term durability and excellent design compatibility.
