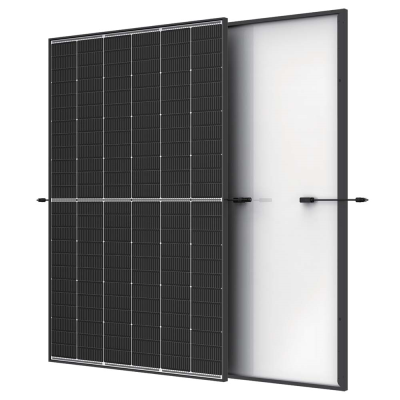

Trinasolar 450W Vertex S+ Dual Glass N-type iTOPCon Solar Module - Black Frame/White Backsheet

SKU: TSM-450NEG9R.28

TSM-450NEG9R.28
NEW

Trina 450 W photovoltaic module from the Vertex S+ range is made of monocrystalline cells with 210 silicon wafer in i-Topcon N-type technology.

Vertex S + has several innovative design features that allow it to achieve high output power. Perfect temperature coefficient and low irradiation efficiency provide even more power. Moreover, thanks to the high-density connections, the efficiency of the Vertex S + can reach up to 22.5%.

Multi-busbar technology used in Trina Vertex S + modules integrates advanced non-destructive cutting and high-density encapsulation technologies. It is also responsible for increased light absorption and fits perfectly into cells with a large surface area. The technology integration allows Vertex to achieve higher power and efficiency of generating energy per watt.

The N-type cells are made using phosphor, which allows them to achieve a lower rate of power degradation, which translates into higher efficiency for many years of use, resulting in more savings. It is thanks to this technology that the manufacturer provides a 30-year warranty on the energy produced by the Trina Vertex S + modules.

Vertex S + TSM-NEG9R.28 photovoltaic modules are made up of 144 monocrystalline cells placed in a 30 mm thick frame, made of anodized aluminium alloy, front and back covered with 1.6 mm thick heat strengthened high transparency glass. The modules have a 25-year warranty for the product and a 30-year warranty for performance.

The connection wires coming out of the IP68-rated boxes are terminated with an MC4 connector.

Seen a better price?
Login to see Trade Prices
  • Manufacturer Trina Solar
  • Frame Colour Black
  • Backsheet Colour White
  • Featured Product Featured Product
  • Commodity Code 85414300
  • Dimensions (mm) (H x W x D) 1762 x 1134 x 30

  • 30-year power output warranty
  • Glass on front and rear of module
  • Reduces installation cost with higher power bin and efficiency
  • High and stable efficiency of up to 22.3% thanks to innovative manufacturing technology
  • Positive power tolerance up to +5 W
  • Non-destructive cutting technology
  • Large area cells based on 210 mm silicon wafers
  • Multi-busbar technology improves light absorption and current dissipation, lower series resistance
  • Excellent performance even with a low solar radiation
  • Snow load up to 5400 Pa and wind load up to 4000 Pa



This product is suitable for both on-grid and off-grid installations
