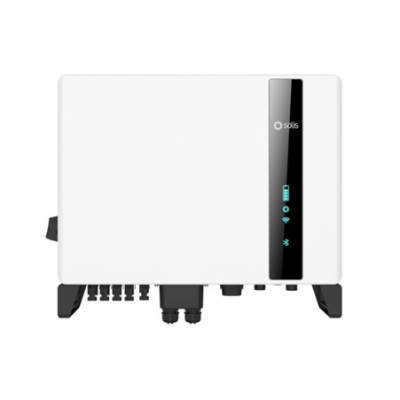

Solis S6 6kW 3 Phase Hybrid Inverter with DC - 3 MPPT for HV Batteries (WIFI/LAN)
SKU: S6-EH3P6K-H-EU
NEW
Solis S6 6kW 3 Phase Hybrid Inverter with DC - 3 MPPT for HV Batteries (WIFI/LAN)
The Solis hybrid inverter offers flexibility in module design with its 3 MPPT. With its high input current, it is compatible with modern high power modules. The Solis Hybrid Inverter has an integrated switching device for backup power. This allows selected loads to continue to be supplied with backup power in the event of a grid failure.
- Integrated switching device for backup power
- Great flexibility with 3 MPPT
- Parallel connection of up to 10 hybrid inverters via RS485
- High input current of 16 A
- AFCI function integrated
- Manufacturer Solis
- Phases 3 Phase
- Power Rating kW 6
- No. of MPPT 3
- Commodity Code 85044085
- Dimensions (mm) (H x W x D) 496 x 596 x 230
Product features
- Mains connection: 3-phase
- AC output: 6 kVA
- 6.0 kW emergency power output via separate output
- MPP tracker: 3 with 1 string output each
- Max. short circuit current per MPPT: 24 A
- Max. input current: 16 A
- Communications: CAN, RS485, Wi-Fi
- Incl. 1 m battery cable with MC4 connectors
- 3-phase smart meter with 3 current transformers included
- WiFi module is included in the scope of delivery
- Protection category: IP66
- Warranty: 5 years
