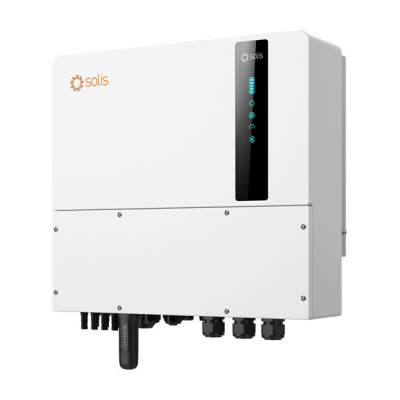

Solis S6 12kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)

SKU: S6-EH3P12K-H-EU

S6-EH3P12K-H-EU
NEW

Solis S6 12kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)

The series three-phase energy storage inverter, suitable for large residential and small commercial PV energy storage systems.
This series of products supports generator network and parallel operation of multiple inverters;
4 MPPT design is perfect for large rooftop PV energy storage systems with roof orientation and complex structure.
Products with multiple flexible load capacity including UPS level switching;
10 seconds 200% surge backup capability and three-phase unbalanced load adaptation.

Seen a better price?
Login to see Trade Prices
  • Application Commercial
  • Manufacturer Solis
  • Phases 3 Phase
  • Power Rating kW 12
  • Inverter Type Hybrid Inverter
  • No. of MPPT 4
  • Commodity Code 85044086
  • Dimensions (mm) (H x W x D) 563 x 546 x 235

  • Max. efficiency 98.4%
  • Intelligent EMS function
  • Supports three-phase unbalance on spare output port
  • 2 MPPT and 4 DC inputs; Max. 26A DC input current
  • Time of use, displacement and peak shaving capabilities to the network
  • AFCI protection, proactively reduces the risk of fire
  • Remote control and upgrade of any selected inverter
  • The power supply can be switched automatically and the switching time within 40ms
  • Provides AC backup power for up to 10kW continuous power and 16kVA peak power
  • 24-hour fully intelligent energy management, real-time understanding of PV plant status
  • Remote control and upgrade function, making maintenance of the digital power plant at your fingertips
  • 3 operating modes (self-consumption; time of use; off-mains backup) and programmable energy management.
