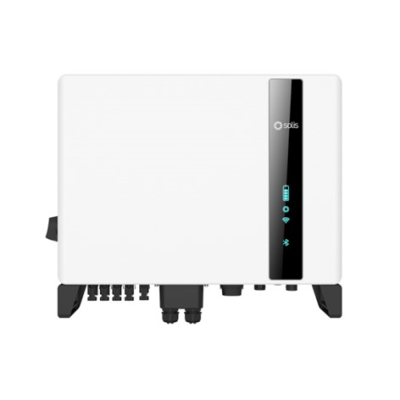

Solis S6 10kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
SKU: S6-EH3P10K-H-EU
NEW
Solis S6 10kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
The Solis hybrid inverter offers flexibility in module design with its 4 MPPT. High input current makes this compatible with modern high power modules. The Solis Hybrid Inverter has an integrated switching device for backup power. This allows selected loads to continue to be supplied with backup power in the event of grid failure.
- Integrated switching device for backup power
- Great flexibility with 4 MPPT
- Parallel connection of up to 10 hybrid inverters via RS485
- High input current of 16 A
- AFCI function integrated
- Application Commercial
- Manufacturer Solis
- Phases 3 Phase
- Power Rating kW 10
- Inverter Type Hybrid Inverter
- No. of MPPT 4
- Commodity Code 85044086
- Dimensions (mm) (H x W x D) 496 x 596 x 230
Product features S6 3P-Hybrid – 10 kW
- Mains connection: 3-phase
- AC output: 10 kVA
- 10.0 kW emergency power output via separate output
- MPP tracker: 4 with 1 string output each
- Max. short circuit current per MPPT: 24 A
- Max. input current: 16 A
- Communcations: CAN, RS485, Wi-Fi
- Incl. 1 m battery cable with MC4 connectors
- 3-phase smart meter with 3 current transformers included
- WiFi module is included in the scope of delivery
- Protection category: IP66
- Warranty: 5 years
