SolarEdge S850 Power Optimizer

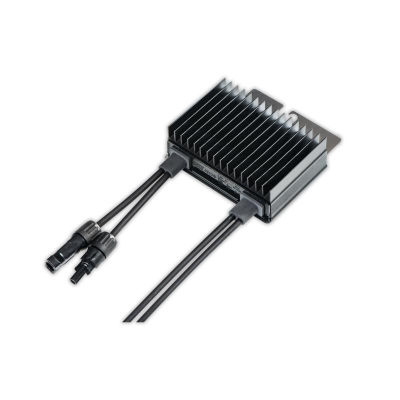

SolarEdge S850 power optimizer

• Designed to work with SolarEdge inverters
• Up to 25% more energy
• Efficiency (99.5%)
• Unique solution that prevents the problem of module mismatch or partial shading
• Maximum space utilization thanks to flexible installation design system
• Quick installation
• Voltage reduction of each module - at installation or in case of fire

Input:

• Nominal input power: 850 W
• Absolute maximum input voltage (Voc at lowest temperature): 125 Vdc
• MPPT voltage range : 12.5 - 105 Vdc
• Maximum short circuit current (Isc): 12.5 Adc
• Maximum efficiency: 99.5%
• Weighted efficiency: 98.6%
• Overvoltage category: II

Output during operation (the power optimizer is connected to an operating SolarEdge inverter)

• Maximum output current: 18 Adc
• Maximum output voltage: 85 Vdc

Standby output (the power optimizer is disconnected from the SolarEdge inverter or the inverter is turned on)

• Safe output voltage of power optimizer: 1 +- 0.1 Vdc

Compliance with standards

• EMC: FCC part 15 class B, IEC61000-6-2, IEC61000-6-3
• Safety: IEC62019-1 (safety class II)
• RoHS: Yes
• Fire protection: VDE-AR-E 2100-712:2013-05

Installation specifications:

• Maximum allowable system voltage : 1000 Vdc
• Dimensions (w x d x w) :129 x 162 x 59 mm
• Weight (including wires): 1064 gr
• Input connector: MC4
• Output cable length: 2,1m
• Operating temperature range: -40 - +185 ̊C
• Degree of protection: IP68
• Relative humidity: 0 - 100 %
