SolarEdge 50KW PCS050 Battery Inverter

SKU: PCS050-RW-400V-A01-01

PCS050-RW-400V-A01-01
NEW

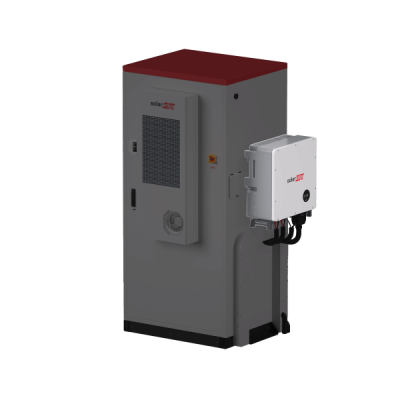

SolarEdge 50kW PCS050 Battery Inverter

The SolarEdge PCS050 is a battery inverter or power conversion system (PCS). It is an AC-coupled solution.

This bi-directional inverter charges and discharges the SolarEdge CSS-OD commercial energy storage system with a maximum charge / discharge at 50kW. The battery inverter enables the battery to be charged from excess PV or the grid.

The SolarEdge PCS050 can be connected to either one or two SolarEdge 102kWh CSS-OD battery systems giving a 2-hour or 4-hour battery.

This unit is designed to mount directly on the side of the CSS-OD battery cabinet

Seen a better price?
Login to see Trade Prices
  • Commercial Solution Yes
  • Manufacturer SolarEdge Technologies
  • Battery Voltage 48V
  • Dimensions (mm) (H x W x D) 325 x 650 x 715

The SolarEdge PCS050 can be connected to either one or two SolarEdge 102kWh CSS-OD battery systems giving a 2-hour or 4-hour battery and a total storage capacity of 204kWh through one PCS.

  • Maximum 97.5% efficiency
  • RS-485 / CAN communication ports
  • IP65-rated
  • Type II integrated DC surge protection
  • Type III integrated AC surge protection
  • Reverse polarity protection, grid monitoring & earth leakage protection
  • 10-year system warranty
