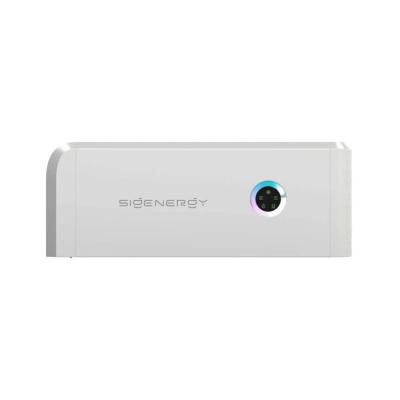

Sigenergy Sigenstor Energy Controller 12kW - Single Phase

• Manufacturer Sigenergy
• Phases 1 Phase
• Inverter Type Hybrid Inverter
• No. of MPPT 4

The Sigenergy Sigenstor Energy Controller 12kW - Single Phase is an advanced energy management solution designed to optimize renewable energy systems. With features such as multi-MPPT technology, intelligent energy control, and robust safety measures, this energy controller provides maximum efficiency and reliability for residential and small commercial installations.

Key Features

• High Output Capacity: Offers 12kW single-phase output, making it ideal for systems requiring high energy throughput.
• Advanced Energy Management System (EMS): Integrates precise control and monitoring for seamless operation and energy optimization.
• Multi-MPPT Tracking: Equipped with up to four MPPT units for efficient energy conversion across multiple solar PV arrays.
• High Efficiency: Achieves a maximum efficiency of up to 98%, ensuring minimal energy loss and maximum savings.
• Scalable Design: Supports up to six compatible battery modules, providing flexibility for expanding energy storage needs.

Technical Specifications

• Nominal Output Power: 12kW single-phase.
• Efficiency: Up to 98%.
• Voltage Compatibility: Battery voltage range of 300–600 V.
• Cooling System: Smart air cooling for reliable performance under varying temperature conditions.
• Ingress Protection: Rated IP66 for outdoor and indoor installations.
• Communication Interfaces: Integrated WLAN, Fast Ethernet, RS485, and Sigen CommMod for seamless connectivity and remote monitoring.
• Operating Environment: -30°C to 60°C temperature range and 0–95% relative humidity.

Why Choose the Sigenergy Sigenstor Energy Controller 12kW - Single Phase?

• Enhanced Energy Efficiency: Delivers superior performance with minimal energy loss, ideal for demanding energy needs.
• Versatile Installation: Compact, lightweight design with flexible mounting options for residential or commercial applications.
• Reliable Safety Features: Includes protections for DC reverse polarity, residual current, and surge, ensuring long-term reliability.
• Future-Ready Design: Compatible with both on-grid and off-grid systems, offering flexibility for various project requirements.
• Ease of Use: Features intuitive quick-connectors and user-friendly setup with real-time monitoring options.

Applications

This energy controller is an excellent choice for:

• Residential renewable energy systems requiring efficient and reliable energy management.
• Small commercial setups with higher energy demand and storage needs.
• Hybrid systems combining solar PV and battery storage for optimized energy usage.
