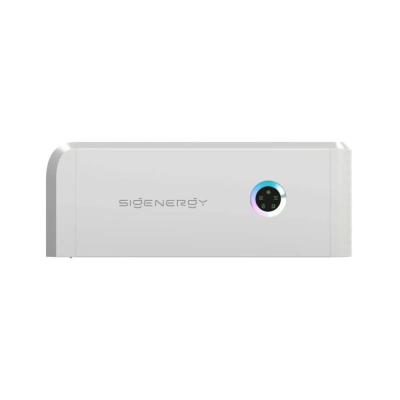

Sigenergy Sigenstor Energy Controller 10kW - Single Phase

SKU: SIG-11040028

SIG-11040028
NEW

The Sigenergy Sigenstor Energy Controller 10kW - Single Phase is a versatile and efficient solution for managing renewable energy systems. With cutting-edge EMS, multiple MPPT trackers, and robust safety features, it delivers unmatched reliability for both residential and small commercial installations.

Login to see Trade Prices
  • Manufacturer Sigenergy
  • Phases 1 Phase
  • Inverter Type Hybrid Inverter
  • No. of MPPT 4

The Sigenergy Sigenstor Energy Controller 10kW - Single Phase is a state-of-the-art energy management system, perfect for enhancing the efficiency of renewable energy setups. Designed with advanced features like multiple MPPT trackers, it seamlessly integrates with PV systems to ensure optimal energy utilization and robust performance.

Key Features

  • Comprehensive Energy Management System (EMS): Ensures precise energy control and monitoring for optimal performance.
  • High Efficiency: Achieves up to 98% efficiency, maximizing energy savings for both residential and commercial applications.
  • Multi-MPPT Tracking: Equipped with up to four Maximum Power Point Tracking (MPPT) units, enabling efficient energy conversion from multiple PV arrays.
  • Versatile DC/AC Ratios: Supports a DC/AC ratio of up to 2, accommodating diverse installation scenarios.
  • Robust Design: Features an IP66 protection rating, safeguarding against harsh environmental conditions.

Technical Specifications

  • Power Range: 3.0 - 12.0 kW single-phase, with 10kW nominal output for this model.
  • Battery Compatibility: Supports SigenStor BAT 5.0/8.0 modules with a voltage range of 300–600 V.
  • Maximum Efficiency: Up to 98% energy efficiency.
  • Cooling System: Smart air cooling for consistent performance in varying temperatures.
  • Operating Range: -30°C to 60°C with 0–95% relative humidity.
  • Dimensions and Weight: Compact design measuring 700 x 300 x 260 mm and weighing 36 kg.
  • Communication Interfaces: Integrated WLAN, Fast Ethernet, RS485, and Sigen CommMod (4G/3G/2G).

Why Choose the Sigenergy Sigenstor Energy Controller 10kW - Single Phase?

  • Reliability and Safety: Equipped with advanced protection features, including DC reverse polarity, residual current monitoring, and Type II surge protection.
  • Seamless Integration: Ideal for on-grid and off-grid systems, providing flexible installation options and quick setup with user-friendly interfaces.
  • Scalable Energy Management: Compatible with up to six battery modules, allowing customization for growing energy needs.
  • Compliance: Certified to industry standards such as IEC/EN 62109 and IEC/EN 62477, ensuring safety and performance.

Applications

This energy controller is ideal for:

  • Residential installations requiring reliable energy management and storage.
  • Small commercial systems needing high-efficiency performance.
  • Hybrid systems combining solar PV and battery storage solutions.
