Sigenergy Sigen PV 60M1-HYA

• Manufacturer Sigenergy
• Phases 3 Phase
• Inverter Type Hybrid Inverter
• No. of MPPT 5

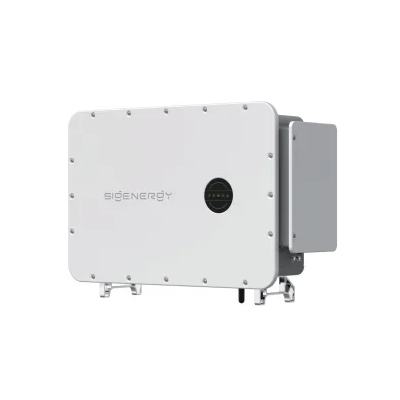

Sigenergy Sigen PV 60M1-HYA – High-Performance 60 kW Solar Inverter

Optimised Energy Conversion for Commercial PV Systems

The SIG-11010132 Sigenergy Sigen PV 60M1-HYA is a powerful 60 kW three-phase solar inverter, designed to maximise energy efficiency in large-scale commercial and industrial solar projects. Offering 98.6% peak efficiency, it ensures optimal power conversion, reducing energy losses and improving system profitability.

Advanced MPPT Technology for Maximum Yield

• Supports up to 120,000 Wp of PV input power, enabling flexible system design.
• Five Maximum Power Point Trackers (MPPTs) optimise solar energy capture across different conditions.
• MPPT voltage range of 160-1,000 V, ensuring strong performance even in varied irradiance levels.

Smart Safety Features and Robust Protection

• Industry-leading Arc Fault Circuit Interrupter (AFCI) technology prevents electrical hazards.
• Real-time PV reverse connection alert ensures correct and safe installation.
• IP66-rated enclosure for all-weather protection, allowing outdoor installations without additional housing.
• Built-in DC and AC surge protection shields the system from voltage fluctuations.

Designed for Easy Installation and Scalability

• Compact, lightweight design (75 kg, 918 x 640 x 340 mm) for straightforward handling and installation.
• Supports multiple units in parallel with no external data logger required.
• Standard MC4 connectors for DC input and OT/DT terminals for AC output simplify installation.

Smart Connectivity and Monitoring

• Integrated WLAN, Fast Ethernet, RS485, and optional 4G/3G/2G communication for remote system monitoring.
• Sigen CommMod compatibility allows seamless integration with smart energy management systems.

Built to Withstand Extreme Conditions

• Operating temperature range: -30°C to 60°C, ensuring performance in diverse climates.
• Altitude tolerance up to 5,000m (derating above 4,000m) for high-altitude solar installations.
• Active air cooling system enhances efficiency and longevity under high loads.

The Ideal Choice for Large-Scale Solar Projects

With high efficiency, robust safety features, and easy scalability, the SIG-11010132 Sigenergy Sigen PV 60M1-HYA is the perfect solution for commercial and industrial solar installations looking to optimise energy production and system reliability.
