Sigenergy Sigen PV 50M1-HYA

• Manufacturer Sigenergy
• Phases 3 Phase
• Inverter Type Hybrid Inverter
• No. of MPPT 4

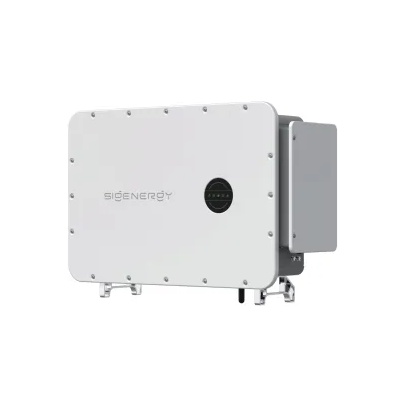

Sigenergy Sigen PV 50M1-HYA – High-Performance 50 kW Solar Inverter

Efficient Power Conversion for Large-Scale PV Systems

The SIG-11010131 Sigenergy Sigen PV 50M1-HYA is a state-of-the-art 50 kW solar inverter, built for commercial and industrial solar installations. With a maximum efficiency of 98.6% and a European efficiency rating of 98.3%, it optimises energy conversion while maintaining reliability in demanding environments.

Advanced MPPT and High PV Input Capacity

• Supports up to 100,000 Wp of PV input power, allowing flexibility in system design.
• Four Maximum Power Point Trackers (MPPTs) ensure precise tracking and maximum yield across varied string configurations.
• A wide MPPT voltage range of 160-1,000 V increases energy harvesting, even in low-light conditions.

Smart and Safe Operation

• Industry-leading Arc Fault Circuit Interrupter (AFCI) provides enhanced fire safety.
• Instant PV reverse connection alert prevents incorrect wiring during installation.
• IP66-rated enclosure ensures dust and water resistance, making it suitable for outdoor installations.
• Built-in DC and AC surge protection safeguards the system from voltage spikes.

Cost-Effective and Easy to Install

• Lightweight and compact (75 kg, 918 x 640 x 340 mm) for straightforward handling and transport.
• No external data logger required – supports multiple inverters in parallel connection for larger systems.
• Plug-and-play MC4 connectors for PV input and OT/DT terminal connections for AC output ensure a hassle-free setup.

Smart Monitoring and Communication

• Integrated WLAN, Fast Ethernet, RS485, and optional 4G/3G/2G connectivity for seamless system monitoring.
• Compatible with Sigen CommMod, offering advanced communication and remote management capabilities.

Built for Harsh Environments

• Operates efficiently in temperatures ranging from -30°C to 60°C.
• Suitable for high-altitude installations, with performance maintained up to 4,000m.
• Active air cooling system ensures stable operation under high loads.

The Ideal Inverter for Commercial Solar Installations

With its high efficiency, robust safety features, and smart monitoring options, the SIG-11010131 Sigenergy Sigen PV 50M1-HYA is the perfect choice for installers looking to deploy reliable and high-performing solar solutions in large-scale PV projects.
