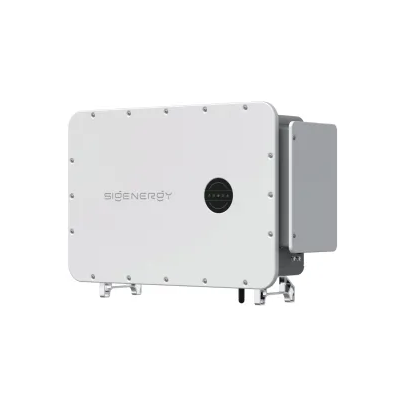

Sigenergy Sigen PV 125M1-HYA

• Manufacturer Sigenergy
• Phases 3 Phase
• Inverter Type Hybrid Inverter
• No. of MPPT 8

Sigenergy Sigen PV 125M1-HYA – High-Efficiency 125 kW Solar Inverter

Optimised Power Conversion for Large-Scale PV Systems

The SIG-11010136 Sigenergy Sigen PV 125M1-HYA is a high-performance 125 kW three-phase solar inverter, engineered to maximise energy conversion for large commercial and industrial installations. With 98.6% peak efficiency, it ensures minimal energy losses while maintaining stable and reliable performance in demanding environments.

Advanced MPPT Technology for Maximum Energy Yield

• Supports up to 220,000 Wp of PV input power, allowing for highly flexible system design.
• Eight Maximum Power Point Trackers (MPPTs) optimise solar energy harvesting from multiple panel orientations.
• MPPT voltage range of 160-1,000 V, ensuring high efficiency even in low-light conditions.

Comprehensive Safety and Protection Features

• Arc Fault Circuit Interrupter (AFCI) technology enhances fire prevention.
• Instant PV reverse connection alert helps ensure proper installation and system safety.
• IP66-rated enclosure, providing complete protection against dust, water, and extreme weather conditions.
• Integrated DC and AC surge protection, shielding the system from voltage fluctuations and electrical surges.

Efficient Installation and Scalability

• Compact and lightweight design (918 x 640 x 340 mm, 75 kg) for simple handling and installation.
• Parallel operation support, allowing multiple inverters to work together without the need for an external data logger.
• MC4 connectors for DC input and OT/DT terminal connections for AC output simplify system integration.

Smart Monitoring and Connectivity

• Built-in WLAN, Fast Ethernet, and RS485 connectivity for real-time system monitoring and control.
• Compatible with Sigen CommMod, enabling seamless remote monitoring and energy management.
• Optional 4G/3G/2G connectivity, ensuring uninterrupted system diagnostics and data access.

Built for Extreme Conditions

• Wide operating temperature range: -30°C to 60°C, ensuring high performance in all climates.
• Altitude tolerance up to 5,000m (derating above 4,000m) for high-altitude installations.
• Smart air cooling system prevents overheating, ensuring stable operation even under heavy loads.

A Powerful and Reliable Inverter for Large Solar Projects

The SIG-11010136 Sigenergy Sigen PV 125M1-HYA combines exceptional efficiency, robust safety, and flexible scalability, making it the perfect choice for installers seeking a high-performance inverter for large commercial and industrial solar power installations.
