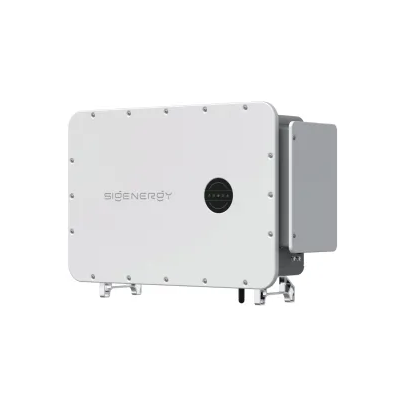

Sigenergy Sigen PV 110M1-HYA

Sigenergy Sigen PV 110M1-HYA – High-Performance 110 kW Solar Inverter

Optimised Energy Generation for Large-Scale Installations

The SIG-11010135 Sigenergy Sigen PV 110M1-HYA is a powerful 110 kW three-phase solar inverter, engineered for high-yield commercial and industrial solar installations. With a 98.6% peak efficiency, it ensures superior energy conversion, reducing operational losses and increasing return on investment.

Advanced MPPT Technology for Maximum Yield

• Supports up to 220,000 Wp of PV input power, allowing versatile system configurations.
• Eight Maximum Power Point Trackers (MPPTs) ensure precise tracking across multiple solar arrays.
• MPPT voltage range of 160-1,000 V, maintaining optimal efficiency in varying sunlight conditions.

Enhanced Safety and Protection Features

• Arc Fault Circuit Interrupter (AFCI) technology enhances fire safety.
• Instant PV reverse connection alert ensures safe and error-free installation.
• IP66-rated enclosure, offering full protection against dust, water, and extreme environmental conditions.
• Integrated DC and AC surge protection, safeguarding the system from voltage surges and fluctuations.

Effortless Installation and Scalable System Design

• Compact and lightweight design (918 x 640 x 340 mm, 75 kg) simplifies handling and installation.
• Supports multiple inverter parallel operation, reducing the need for external data loggers.
• Plug-and-play MC4 connectors for DC input and OT/DT terminal connections for AC output for seamless integration.

Smart Connectivity and Monitoring

• Integrated WLAN, Fast Ethernet, and RS485 connectivity for real-time system monitoring.
• Compatible with Sigen CommMod, enabling remote monitoring and intelligent energy management.
• Supports optional 4G/3G/2G connectivity, ensuring continuous system oversight.

Built to Perform in Extreme Conditions

• Operating temperature range: -30°C to 60°C, ensuring reliable performance in all climates.
• Altitude tolerance up to 5,000m (derating above 4,000m) for high-altitude installations.
• Smart air cooling system maintains efficiency under heavy loads.

A Reliable, High-Efficiency Solar Inverter for Commercial PV Systems

The SIG-11010135 Sigenergy Sigen PV 110M1-HYA delivers outstanding efficiency, advanced safety, and scalable performance, making it the ideal choice for installers seeking a robust and future-proof solution for large-scale solar power installations.
