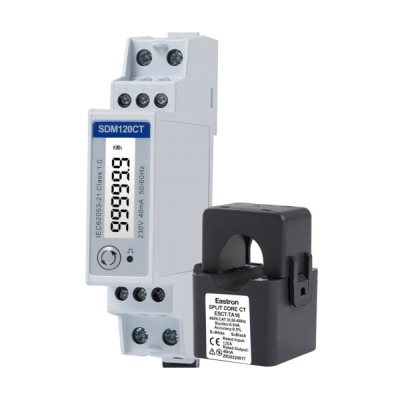

Sigenergy Sigen Sensor Single Phase-CT120-DH

• Manufacturer Sigenergy
• Phases 1 Phase
• Accessory Product Type Sensors

The Sigenergy Sensor Single Phase-CT120-DH is a cutting-edge energy measurement solution tailored for precision and efficiency. With a focus on accuracy, seamless integration, and advanced features, this sensor is ideal for residential and small-scale commercial energy systems, providing detailed insights and real-time data for optimized energy management.

Key Features

• High-Accuracy Measurement: Delivers 1% precision in power detection, ensuring reliable and accurate control for all energy monitoring needs.
• Real-Time LCD Display: Features an intuitive LCD interface for real-time updates, making it easy to operate and monitor system performance at a glance.
• Seamless Integration: Designed to integrate smoothly with Sigenergy devices, eliminating the need for additional setup or configuration.
• Top-Class Current Handling: Includes a built-in Current Transformer (CT) with a direct connection supporting up to 100 A for robust performance.
• AI-Ready Capabilities: Equipped to support export/import limitations and designed for future AI evolutions, ensuring long-term adaptability.
• Fast Data Refresh Rate: Provides instantaneous data with a 100 ms refresh rate, keeping your energy management system up-to-date.

Technical Specifications

Power Supply: Supports single-phase grid connection (1P2W) with an AC input voltage range of 176–276 V and a nominal frequency of 50/60 Hz.

Accuracy:

• Voltage: ±0.5%
• Current: ±0.5%
• Power: ±1%
• Frequency: ±0.2%

Communication:

• Interface: RS485
• Protocol: Modbus RTU
• Baud Rate: 9600 bps

General Data:

• Dimensions: 36 mm (W) x 100 mm (H) x 63 mm (D)
• Weight: 0.20 kg
• Operating Temperature: -25°C to 60°C
• Ingress Protection: IP20
• Installation: DIN Rail 35 mm

CT Accessory:

• Maximum Operating Current: 120 A
• Inner Diameter: 16 mm
• Cable Length: 1 m
• Weight: 0.09 kg

Why Choose the Sigenergy Sensor Single Phase-CT120-DH?

• Unparalleled Accuracy: Benefit from industry-leading measurement precision for dependable energy monitoring.
• User-Friendly Design: The built-in LCD display and quick installation simplify operations and setup.
• Durable and Reliable: With robust design and compliance with EN 61010 standards, it is built for longevity in demanding environments.
• Future-Proof: AI-ready features ensure the sensor evolves with advancing technologies.

Applications

The Sigenergy Sensor Single Phase-CT120-DH is perfect for:

• Residential energy monitoring and optimization.
• Small-scale commercial setups requiring high-accuracy power detection.
• Systems integrating advanced AI-based energy solutions.
