- Schletter End Clamp Rapid16 40-50mm - Silver

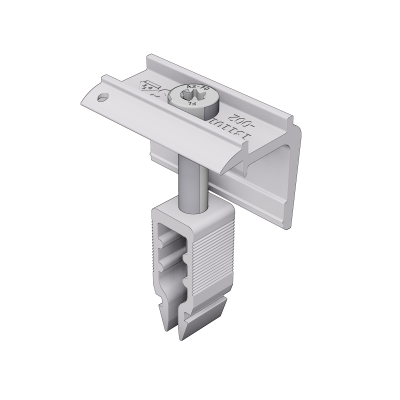

Schletter End Clamp Rapid16 40-50mm - Silver
SKU: 131101-002
![Schletter Manufacturer_Schletter](https://www.cclcomponents.com/Content/107/images/Attributeimage/Manufacturer_Schletter.jpg)
The Schletter module clamp series Rapid16 offers many advantages such as improved warehousing as there are fewer variants and the earthing pin is now incorporated into every clamp.Â
- Manufacturer Schletter
- Mounting Type On Roof
- Mounting Part Module End Clamps
- Commodity Code 76109090
- Dimensions (mm) (H x W x D) 212 x 30 x 50
Rapid16 fits all Schletter module bearing rails with an 8mm click-in channel for modules between 30 and 50mm. The clamping height is divided into two ranges. The lower module clamps can accommodate modules between 30 and 40mm. The higher module clamps would suit modules between 40 and 50mm. To complement black module frames all clamps are also available in black anodized.
