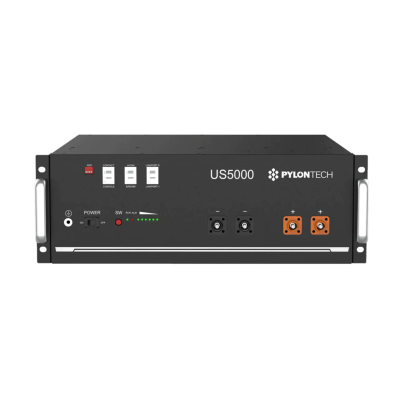

Pylon US5000-1C 4.8kWh Li-Ion Solar Battery
SKU: US5000-1C
An updated version of the US5000 battery from Pylontech. The US5000-1C is a 48V battery with incredible features to provide a competitive edge in the market.
The US5000-1C offers upgraded firmware and increased operation logic from 0.8C to 1.0C.
This 4.8kWh energy storage product from Pylon is a lithium iron phosphate (LFP) battery with a maximum DoD of 95% and a 10 year warranty. The modular design of the battery enables storage banks to be built in units of 4.8kWh. The units are simply daisy-chained together for communication, and links are provided for connecting the batteries parallel.
These batteries can be mounted using the US5000 Stackable Brackets.
High Charge & Discharge Rate: Now supports 1C charge and discharge, allowing for faster cycling and higher energy throughput.
Backwards compatible: With the full range of PylonTech US series modules
- Manufacturer Pylon Technologies
- Battery Voltage 48V
- Battery Chemistry Lithium-Ion
Features
- Remote upgrade
- Up to 16 units per COM string, when using the LV Hub this can be up to 40 batteries!
- 80A charge/discharge rate, 100A @ 15min, 200A @ 15s
- Four levels of current protection – charging/discharging MOS, dual passive and active fuses and pre-charge circuit
- Modular design for ease of expansion
- Higher usable capacity resulting in less battery modules installed
- Usable capacity 4 560Wh
- Parallel Capability of up to 16 units
- Allows for large installation of up to 72.96kWh with no LV Hub
- Intelligent BMS protecting battery cells
- 95% DoD with more usable capacity
- RS485 and CAN compatible
- Long cycle life and superior performance
- Compatible with tier 1 inverter brands
