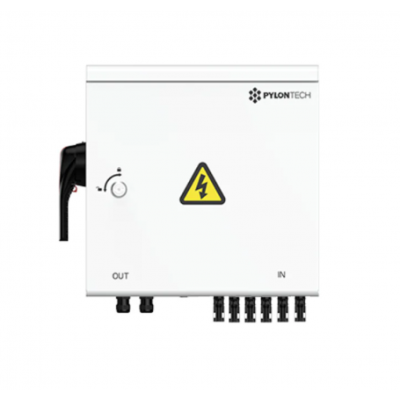

Pylon Combiner Box Force - 6 Towers

• Manufacturer Pylon Technologies
• IP Rating IP55

Optimised for Large-Scale Energy Storage

The Pylon Combiner Box Force - 6 Towers is engineered to simplify and enhance high-voltage energy storage systems. With a nominal voltage of 600V DC and support for up to six input strings, it streamlines power distribution while maintaining maximum safety and efficiency.

Superior Safety and Protection

Safety is a key feature of the Pylon Combiner Box Force - 6 Towers, which includes:

• High-performance fuse protection with a 50kA breaking capacity to prevent electrical faults.
• A powerful disconnecting switch rated at 12kA (1500V DC) for secure operation and maintenance.
• IP55-rated enclosure, offering protection against dust, water, and harsh environmental conditions.

High Power Handling and Performance

Designed for high-demand applications, this combiner box supports:

• 50A nominal input current per terminal for seamless energy transfer.
• A single 100A output string, ensuring efficient energy flow with minimal losses.
• Reliable cable connections (O-ring M24*1.5) for secure and stable power transmission.

Durable and Built to Last

• Long 15+ year design life, ensuring consistent performance over time.
• Wide operating temperature range (-20°C to 55°C) for installation in diverse climates.
• Capable of operating at altitudes up to 4,000m, making it suitable for challenging environments.

Seamless Integration and Easy Installation

The Pylon Combiner Box Force - 6 Towers is designed for quick and hassle-free setup, featuring Amphenol H4 input terminals for secure connections. It meets international standards IEC61439-1, IEC61439-2, and UL1741, ensuring reliability and compatibility with professional energy storage and solar systems.

Why Choose the Pylon Combiner Box Force - 6 Towers?

• Increases efficiency by safely combining multiple input strings into one output.
• Robust safety features, including fuse protection and a high-capacity disconnect switch.
• Weather-resistant design, with IP55-rated protection for outdoor and industrial environments.
• Long-term reliability, backed by a 15+ year lifespan for stable energy distribution.

Upgrade your energy storage system with the Pylon Combiner Box Force - 6 Towers—a reliable, high-performance solution designed for professional applications.
