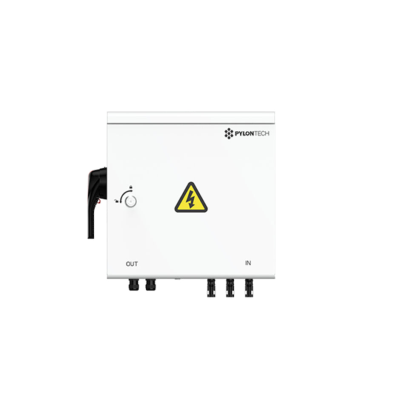

Pylon Combiner Box Force - 3 Towers

• Manufacturer Pylon Technologies
• IP Rating IP55

Optimised for High-Voltage Energy Storage Systems

The Pylon Combiner Box Force - 3 Towers is a robust and efficient DC combiner box designed to streamline and enhance energy storage installations. With a nominal voltage of 600V DC and support for up to three input strings, this combiner box simplifies system integration while maintaining high safety and efficiency standards.

Built for Safety and Performance

Safety is a top priority with the Pylon Combiner Box Force - 3 Towers, which includes:

• Fuse protection with 50kA breaking capacity, safeguarding the system from electrical faults.
• A high-capacity disconnecting switch (12kA @ 1500V DC) for secure operation and maintenance.
• IP55-rated enclosure, providing resistance against dust and water ingress, making it suitable for harsh environments.

Efficient Energy Distribution

Designed for large-scale battery storage systems, this combiner box supports a 50A nominal input current per terminal and a single high-capacity output string, ensuring smooth and efficient energy distribution with minimal power loss.

Reliable and Durable Design

• Designed for long-term operation with a 15+ year lifespan under normal conditions.
• Operates in extreme temperatures ranging from -20°C to 55°C, making it suitable for diverse climates.
• Supports high-altitude installations up to 4,000m, ensuring versatility in deployment.

Seamless Installation and Compatibility

The Pylon Combiner Box Force - 3 Towers features Amphenol H4 input terminals for easy connection and an O-ring cable output terminal for secure power transmission. It meets international standards IEC61439-1, IEC61439-2, and UL1741, ensuring compatibility with professional energy storage systems.

Why Choose the Pylon Combiner Box Force - 3 Towers?

• Enhances system efficiency by combining multiple input strings into one secure output.
• Designed for safety, with high-rated fuses and disconnecting switches.
• Weather-resistant with IP55 protection for outdoor and industrial environments.
• Long-lasting reliability, with a 15+ year lifespan for stable energy distribution.

Upgrade your energy storage system with the Pylon Combiner Box Force - 3 Towers—a durable, high-performance solution built for demanding applications.
