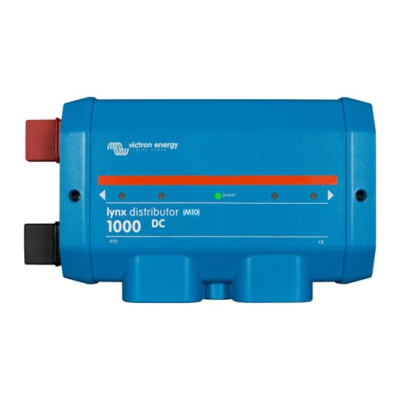

Victron Lynx Distributor (M10)
SKU: LYN060102010
A modular DC busbar with locations for four AMG/MEGA DC fuses (sold separately). It will monitor the status of each fuse and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.
- Manufacturer Victron Energy
- Accessory Product Type Transfer Switches & DC Distribution
- Commodity Code 85369010
- Dimensions (mm) (H x W x D) 290 x 170 x 80
- IP Rating IP22
- Voltage range 9 - 60Vdc
- Supported system voltages 12 24 or 48V
- Current rating 1000A
- Reverse polarity protection Yes
- Busbar M10
- Fuses M8
- Enclosure material ABS
- Busbar material Tinned copper
- Operating temperature range -40°C to +60°
- Storage temperature range -40°C to +60°
- Protection class IP22
