- LONGi Solar 580W Hi-MO X6 Explorer HPBC Mono Solar Module - Silver Frame/White Backsheet

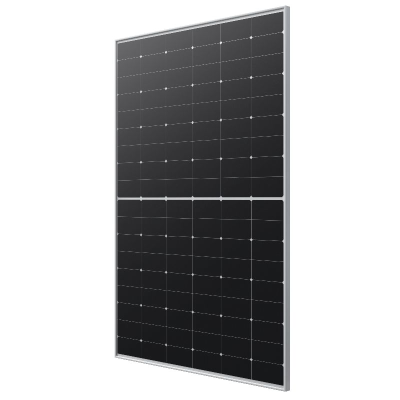

LONGi Solar 580W Hi-MO X6 Explorer HPBC Mono Solar Module - Silver Frame/White Backsheet
SKU: LR5-72HTH-580M
![LONGi Solar Manufacturer_LONGi](https://www.cclcomponents.com/Content/107/images/Attributeimage/Manufacturer_LONGi.jpg)
LONGi Hi-MO X6 LR5-72HTH-580M
A 580W, 144-cell solar panel that is ideal for larger-scale commercial & industrial installations. The module features a silver frame and white backsheet, and uses high-efficiency Hybrid Passivated Back Contact (HPBC) technology for high performance, long-term reliability and a sleek aesthetic.
With a maximum efficiency of 22.5%, this solar PV module offers less than 1.5% first-year power degradation and 0.4% annual degradation from years 2-25. The module has a 15-year product warranty and a 25-year power warranty.
Key specs include:
VOC of 52.21V, ISC of 14.20A, and temperature coefficient of -0.290%/◦C.
Weight: 27.5kg; Dimensions (H x W x D): 2278 x 1134 x 35mm.
- Promotion LONGi
- Application Commercial
- Manufacturer LONGi Solar
- Frame Colour Silver
- Backsheet Colour White
- Commodity Code 85414300
- Dimensions (mm) (H x W x D) 2278 x 1134 x 35
Part of the LONGi Hi-MO X6 Explorer series, the LR5-72HTH-580M is a 144-cell, solar panel with a power rating of 580W. The cell orientation is 6x24. This larger solar PV module is ideal for larger-scale commercial & industrial applications, and features a silver frame and white backsheet.
The modules employ high efficiency, Hybrid Passivated Back Contact (HPBC) technology for high performance and reliability, and to create a sleek aesthetic. They deliver 22.5% maximum efficiency, with less than 1.5% first year power degradation, and 0.4% in years 2-25. These solar modules have a temperature coefficient (Pmax) of -0.29%/◦C, STC (efficiency decrease for each degree of temperature increase above 25◦C).
One pallet contains 31 units (155pcs per 20’GP / 620pcs per 40’HC).
The LR5-72HTH-580M modules are backed by a comprehensive product warranty of 15 years and a power warranty of 25 years.
Benefits
- Simple design
- High efficiency cells
- Outstanding performance
- Long-term reliability
Solar PV System Design Information (STC)
Open circuit voltage (VOC): 52.21V
Short circuit current (ISC): 14.20A
LONGi Hi-MO X6 Series
The Hi-MO X6 series is characterised by Hybrid Passivated Back Contact (HPBC) technology which is unique in its front-side busbar-free design.
- Greater output through enhanced light absorption, increased efficiency & energy conversion.
- Maximised yield throughout the day due to superior performance in low-light conditions
- Sleek, high-end aesthetic
- Greater reliability - full back welding technology improves resistance to micro-cracking
