LONGi Solar 575W Hi-MO X6 Explorer HPBC Mono Solar Module - Silver Frame/White Backsheet

SKU: LR5-72HTH-575M

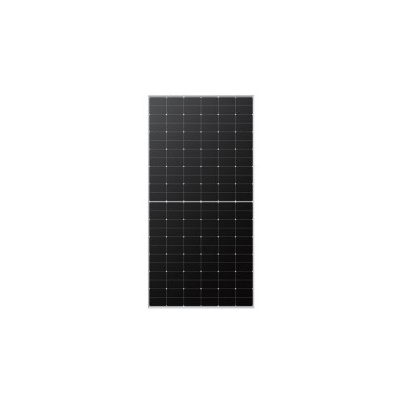

LR5-72HTH-575M front

LONGi Hi-MO X6 LR5-72HTH-575M

A 144-cell solar panel that is ideal for larger-scale commercial & industrial installations. The module features a silver frame and white backsheet, and uses high-efficiency Hybrid Passivated Back Contact (HPBC) technology for high performance, long-term reliability and a sleek aesthetic.

With a maximum efficiency of 22.3%, this solar PV module offers less than 1.5% first-year power degradation and 0.4% annual degradation from years 2-25. The module has a 15-year product warranty and a 25-year power warranty.

Key specs include:

VOC of 52.06V, ISC of 14.14A, and temperature coefficient of -0.290%/◦C.

Weight: 27.5kg; Dimensions (H x W x D): 2278 x 1134 x 35mm.

Seen a better price?
Login to see Trade Prices
  • Promotion LONGi
  • Application Commercial
  • Manufacturer LONGi Solar
  • Material Monocrystalline
  • Frame Colour Black
  • Backsheet Colour White
  • Commodity Code 85414300
  • Dimensions (mm) (H x W x D) 2278 x 1134 x 35
  • IP Rating IP68

Part of the LONGi Hi-MO X6 Explorer series, the LR5-72HTH-575M is a 144-cell, solar panel with a power rating of 575W. The cell orientation is 6x24. This larger solar PV module is ideal for larger-scale commercial & industrial applications, and features a silver frame and white backsheet.

The modules employ high efficiency, Hybrid Passivated Back Contact (HPBC) technology for high performance and reliability, and to create a sleek aesthetic. They deliver 22.3% maximum efficiency, with less than 1.5% first year power degradation, and 0.4% in years 2-25. These solar modules have a temperature coefficient (Pmax) of -0.29%/◦C, STC (efficiency decrease for each degree of temperature increase above 25◦C).

One pallet contains 31 units (155pcs per 20’GP / 620pcs per 40’HC).

The LR5-72HTH-575M modules are backed by a comprehensive product warranty of 15 years and a power warranty of 25 years.

Benefits

  • Simple design
  • High efficiency cells
  • Outstanding performance
  • Long-term reliability

Solar PV System Design Information (STC)

Open circuit voltage (VOC): 52.06V

Short circuit current (ISC): 14.14A

LONGi Hi-MO X6 Series
The Hi-MO X6 series is characterised by Hybrid Passivated Back Contact (HPBC) technology which is unique in its front-side busbar-free design.

  • Greater output through enhanced light absorption, increased efficiency & energy conversion.
  • Maximised yield throughout the day due to superior performance in low-light conditions
  • Sleek, high-end aesthetic
  • Greater reliability - full back welding technology improves resistance to micro-cracking
