LONGi Solar 440W Hi-MO X6 Mono Solar Module - Black Frame/White Backsheet

SKU: LR5-54HTH-440M

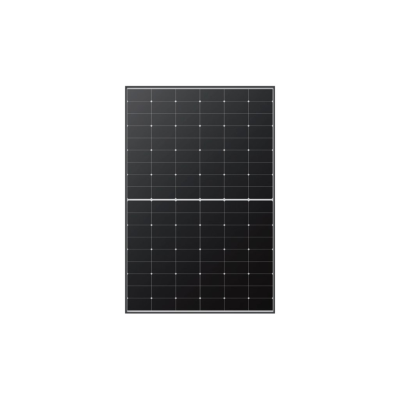

LR5-54HTH-440M front

LONGi Hi-MO X6 LR5-54HTH-440M

A 440W solar panel that is ideal for both commercial & industrial, and residential rooftop installations. It features a black frame and white backsheet, and uses high-efficiency Hybrid Passivated Back Contact (HPBC) technology for high performance, long-term reliability and a sleek aesthetic.

With a maximum efficiency of 22.5%, this solar PV module offers less than 1.5% first-year power degradation and 0.4% annual degradation from years 2-25. The module has a 15-year product warranty and a 25-year power warranty.

Key specs include:

VOC of 39.53V, ISC of 14.30A, and temperature coefficient of -0.290%/◦C.

Weight: 20.8kg; Dimensions: 1722 x 1134 x 30mm.

Seen a better price?
Login to see Trade Prices
  • Promotion LONGi
  • Manufacturer LONGi Solar
  • Material Monocrystalline
  • Frame Colour Black
  • Backsheet Colour White
  • Panel Mounting Type On Roof / Ground
  • Commodity Code 85414300
  • Dimensions (mm) (H x W x D) 1722 x 1134 x 30

Part of the LONGi Hi-MO X6 Explorer series, the LR5-54HTH-440M is a 108-cell solar panel with a power rating of 440W. The cell orientation is 6x18. Ideal for commercial & industrial as well as residential rooftop PV systems, the solar PV modules feature a black frame and white backsheet.

The modules employ high efficiency, Hybrid Passivated Back Contact (HPBC) technology for high performance and reliability, and to create a sleek aesthetic. They deliver 22.5% maximum efficiency, with less than 1.5% first year power degradation, and 0.4% in years 2-25. These solar modules have a temperature coefficient (Pmax) of -0.29%/◦C, STC (efficiency decrease for each degree of temperature increase above 25◦C).

One pallet contains 36 units (216pcs per 20’GP / 936pcs per 40’HC).

The LR5-54HTH-440M modules are backed by a comprehensive product warranty of 15 years and a power warranty of 25 years.

Benefits

  • Simple design
  • High efficiency cells
  • Outstanding performance
  • Long-term reliability

Solar PV System Design Information (STC)

Open circuit voltage (VOC): 39.53V

Short circuit current (ISC): 14.30A

LONGi Hi-MO X6 Series
The Hi-MO X6 series is characterised by Hybrid Passivated Back Contact (HPBC) technology which is unique in its front-side busbar-free design.

  • Greater output through enhanced light absorption, increased efficiency & energy conversion.
  • Maximised yield throughout the day due to superior performance in low-light conditions
  • Sleek, high-end aesthetic
  • Greater reliability - full back welding technology improves resistance to micro-cracking
