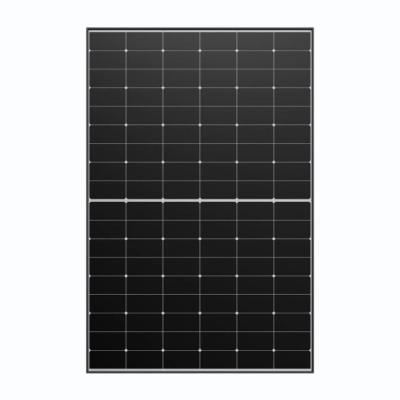

LONGi Solar 435W Hi-MoX6 Dual Glass Solar Module – Bi-Facial Dual Glass - Black Frame/White Glazing
SKU: LR5-54HTD-435M
LONGi Hi-MO X6 LR5-54HTD-435M
A bifacial solar panel that is ideal for commercial applications including carports and ground-mount systems, where additional yield is gained from the rear side of the panel.
The LR5-54HTD-435M features a black frame and white glazing, and uses high-efficiency Hybrid Passivated Back Contact (HPBC) technology for high performance, long-term reliability and a sleek aesthetic.
With a maximum efficiency of 22.3%, this solar PV module offers less than 1.5% first-year power degradation and 0.4% annual degradation from years 2-30. The module has a 15-year product warranty and a 30-year power warranty.
Key specs include:
VOC of 39.82V, ISC of 13.95A, and temperature coefficient of -0.290%/◦C.
Weight: 22.5kg; Dimensions: 1722 x 1134 x 30mm.
- Promotion LONGi
- Manufacturer LONGi Solar
- Material Monocrystalline
- Frame Colour Black
- Backsheet Colour Transparent
- Commodity Code 85414300
- Dimensions (mm) (H x W x D) 1722 x 1134 x 30
Part of the LONGi Hi-MO X6 Explorer series, the LR5-54HTD-435M is a 108-cell, bifacial solar panel with a power rating of 435W (excluding rear side gain). The cell orientation is 6x18. The LR5-54HTD-435M is ideal for C&I rooftop applications such as carports, as well as ground-mount systems.
The modules feature a black frame with white glazing and employ high efficiency, Hybrid Passivated Back Contact (HPBC) technology for high performance and reliability, and to create a sleek aesthetic. They deliver 22.3% maximum efficiency, with less than 1.5% first year power degradation, and 0.4% in years 2-30. These solar modules have a temperature coefficient (Pmax) of -0.29%/◦C, STC (efficiency decrease for each degree of temperature increase above 25◦C).
One pallet contains 36 units (216pcs per 20’GP / 936pcs per 40’HC).
The LR5-54HTD-435M modules are backed by a comprehensive product warranty of 15 years and a power warranty of 30 years.
Benefits
- Bifacial - increased energy yield via rear side module gain
- Simple design
- High efficiency cells
- Outstanding performance
- Long-term reliability
Solar PV System Design Information (STC)
Front open circuit voltage (VOC): 39.82V
Front short circuit current (ISC): 13.95A
Please consult the datasheet for rear side electrical gain information and parameters.
LONGi Hi-MO X6 Series
The Hi-MO X6 series is characterised by Hybrid Passivated Back Contact (HPBC) technology which is unique in its front-side busbar-free design.
- Greater output through enhanced light absorption, increased efficiency & energy conversion.
- Maximised yield throughout the day due to superior performance in low-light conditions
- Sleek, high-end aesthetic
- Greater reliability - full back welding technology improves resistance to micro-cracking
