Lite Work Designs Heat Pump Mover Accessory
SKU: Heat Pump Mover
NEW
The Heat Pump Mover enhances efficiency and safety in HVAC and air source heat pump installations by allowing a single engineer to transport heavy heat pumps with ease. Its innovative design, featuring a bespoke cradle and pneumatic wheel system, dramatically reduces load and strain, minimising injury risks and boosting productivity. Built for durability and versatile on any terrain, the Heat Pump Mover ensures faster project completion and a safer, more efficient workflow.
- Manufacturer Heat Pump Mover

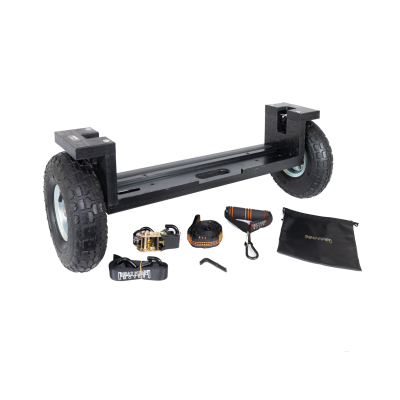

What’s In The Box?
- 1x Assembled Heat Pump Mover
- 1x Pump Securing Strap
- 1x Pull Strap and Handle
- 2x Allen Keys (for maintenance purposes)
- 1x Accessories Pouch
- 3 Year Guarantee
- Instruction Pamphlet
Operational Conditions
- MAX LOAD: The maximum load for the Heat Pump Mover is 250Kg while standing.
- MAX LOAD MOVING: The maximum load for the Heat Pump Mover is 200Kg whilst being moved across typical building site.
- MAX DISTANCE: Max distance for a single movement across a typical building site is 50m in a single movement.
- MAX TILT: The maximum tilt angle the Heat Pump Mover can work is 10 DEG for an obstacle while moving across a typical building site. If the site is particularly rough, you must stop after each major obstacle to prevent a side swing momentum from building up.
- MAX PULL: Whilst pulling the Mover and Heat Pump across a typical building site the maximum pull load on the handle provided is 50Kg pull to prevent the Heat Pump from being damaged.
- MAX TIGHTEN: Straps should be lightly tightened to prevent the Heat Pump from moving on the Mover. The straps must not be tightened over 50Kg to prevent the Heat Pump from being damaged.
- MAX SPEED: For your safety, the Mover is designed for walking speed you must not exceed 4 km/h.
- TYRE PRESSURE: The optimum type pressure for Heat Pump stability is 30 psi for pumps weighing over 100 Kg.
