GivEnergy All in One Commercial 69kWh
SKU: GIV-SME-AIO-ID

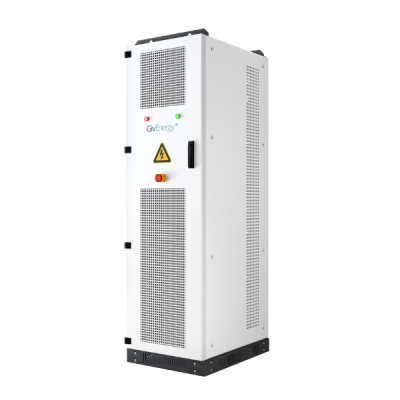

A compact and cost-effective commercial energy storage solution designed to meet your customers' energy needs within a single, sleek piece of kit. The GivEnergy All In One combines 69kWh of battery storage plus PCS (Power Conversion System) and EMS (Energy Management System) in a single, integrated cabinet system, along with inbuilt SPD and DC circuit breaker.
Up to six units can be installed in parallel and the system is self-addressing so in a multi-cabinet system, if one unit is down for maintenance, the system automatically shares the power requirements between the remaining units.
Each cabinet measures 2050 x 600 x 800mm (HxWxD), the system is IP20-rated. This AC-coupled solution is G99 compliant, and the battery configuration comprises one high voltage box and nine 7.68kWh (100Ah) battery packs.
This ready-to-go solution is designed for simple installation on site, with plug and play battery packs.
- Built-in safety mechanisms
- 10-year battery warranty* & 10-year inverter warranty
- Remote monitoring and control via GivEnergy Cloud & GivEnergy app
* 70% remaining capacity after the first of 10 years or 10MWh per kWh throughput.
- Manufacturer GivEnergy
- Commodity Code 85078000
- Dimensions (mm) (H x W x D) 2050 x 600 x 800
The commercial All in One is GivEnergy's most compact, cost-effective commercial battery storage solution.
It combines battery, PCS, and EMS in a single integrated system. So, your energy needs are met with a single, sleek piece of kit.
- Out-of-the-box convenience: Comes to you as a ready-to-go, turnkey solution that can be quickly and easily installed on site using plug and play battery packs.
- A true cost and space saver: By integrating all needed components into a single unit, the system represents maximum value, at a minimal size and price.
- Built-in safety: Every practical protection has been built-in to the system. It’s reliable, rock-solid, and rigorously safety-checked.
- Simple & user-friendly: Effortless operation, simple plug and play installation, plus easy cloud control. There’s no simpler way to get started with commercial battery storage.
- Scalable: Up to 6 units can be combined to suit your needs.
- 30kW AC coupled inverter
- 69kWh battery storage
- Expandable between 1-6 units (30 to 180kW power, 69 to 414kWh storage)
- Only sold via distribution for systems of 6 or less units
- Launch offer: Buy 5 for 4% cost reduction, or buy 10 to get 1 free
- 10 year warranty
- Quick fit: AC plug and socket on the top of the cabinet, allows wiring to be completed away from the cabinet
- Top cable entry to allow easier installation of multiple units together
- Plug and Play battery packs – No DC or data connections to be made
- Pre-mounted PCS
- Easy to fit split core CT’s
- Easy to move & will fit through most ‘standard’ doorways
- Connects to the GivEnergy Cloud
- UK based sales & service support
