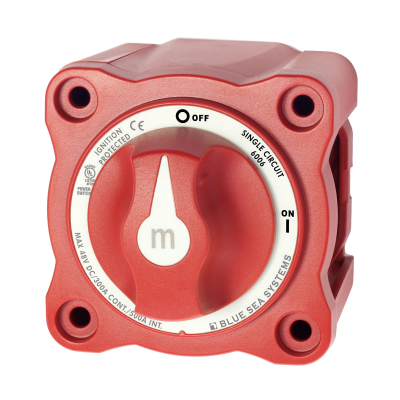

Blue Sea Systems m-Series 48V On/Off Battery Switch

• Manufacturer Blue Sea Systems
• Accessory Product Type Battery Isolators & Combiners
• Commodity Code 85365080
• Dimensions (mm) (H x W x D) 71.7 x 71.7 x 77.9

On/Off Single Circuit - Switches a single battery to a single load group.

• 300A continuous rating for outboards & small engines.
• Single circuit On/Off.
• 2 switch positions.
• 1 battery input.

FEATURES

• Ignition protected - safe for installation aboard gasoline/diesel-powered boats.
• Studs accepts 3/8" (M10) ring terminals.
• 7/8" (22mm) stud length accepts multiple cable terminals.
• Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction.
• Case design allows surface, rear, or front panel mounting.
• Tin-plated copper studs for maximum conductivity and corrosion resistance.
• Blue Sea Systems one-piece terminal stud design never loosens over time.

CERTIFICATIONS

• Meets UL 1500 and SAE J1171 external ignition protection requirements.
• Meets American Boat and Yacht Council (ABYC) requirements.
• Waterproof - IP66 rated against powerful water jets.
• UL Listed - UL 1107 electric power switches.
• ISO 8846
